Stamping/ Stacking Robot SDCX RMD-300/200/160/120/35/08/110/20/50

Ifihan kukuru ti ọja naa

Robot stamping ti wa ni lilo pupọ fun akopọ, destacking, gbigbe ati awọn iṣẹ-ṣiṣe miiran ni awọn aaye ti iṣakojọpọ, ohun mimu, ile-iṣẹ kemikali, ounjẹ, ati bẹbẹ lọ, pese awọn olumulo pẹlu eto kikun ti iyara, ailewu, rọ, deede ati awọn solusan iṣẹ ipo.

PE WA

Alaye ọja

ọja Tags

Imọ paramita

Awoṣe No.	Ìyí ti Ominira	Ipo wiwakọ	Isanwo (KG)	Titun ipo deede (mm)	Ibiti išipopada (°)				Iyara ti o pọju (°/s)				Ailokun fifuye ti ọwọ (kg·m²)	Lilu yipo (yipo/wakati)	Radius ti išipopada (mm)	Iwọn Agbegbe (kg)
Awoṣe No.	Ìyí ti Ominira	Ipo wiwakọ	Isanwo (KG)	Titun ipo deede (mm)	J1	J2	J3	J4	J1	J2	J3	J4	Ailokun fifuye ti ọwọ (kg·m²)	Lilu yipo (yipo/wakati)	Radius ti išipopada (mm)	Iwọn Agbegbe (kg)

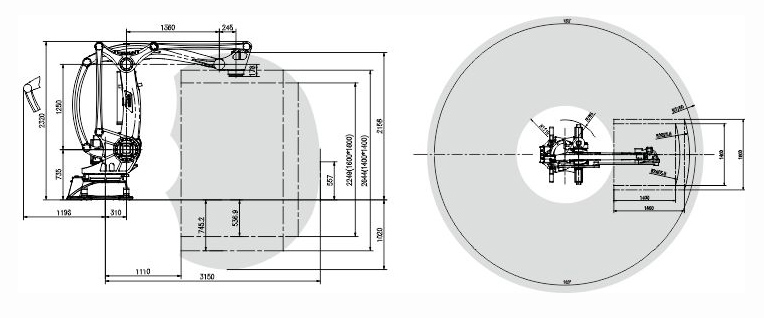

SDCX-RMD300	4	AC servo wakọ	300	±0.5	± 180	± + 100 ~ -44	± + 121 ~ -15	± 360	85	90	100	190	134	1000^③	3150	1500
SDCX-RMD200	4	AC servo wakọ	200	±0.3	± 180	± + 100 ~ -44	± + 121 ~ -15	± 360	105	107	114	242	78	1300^③	3150	1500
SDCX-RMD160	4	AC servo wakọ	160	±0.3	± 180	± + 100 ~ -44	± + 121 ~ -15	± 360	123	123	128	300	78	1500^③	3150	1500
SDCX-RMD120	4	AC servo wakọ	120	±0.3	± 180	± + 100 ~ -44	± + 121 ~ -15	± 360	128	126	135	300	78	1560^③	3150	1500

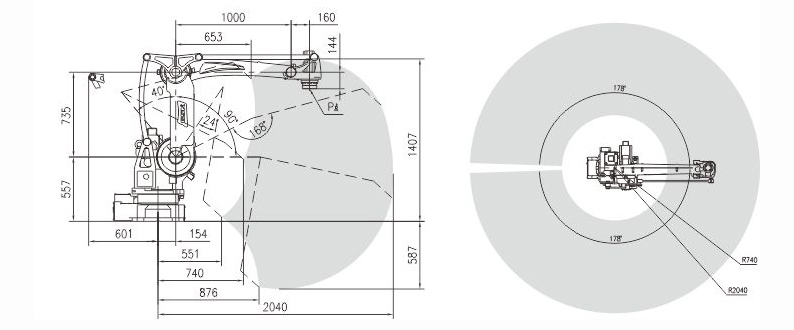

SDCX-RMD50	4	AC servo wakọ	50	±0.2	± 178	± + 90 ~ -40	± + 65 ~ -78	± 360	171	171	171	222	4.5	1700^②	Ọdun 2040	660

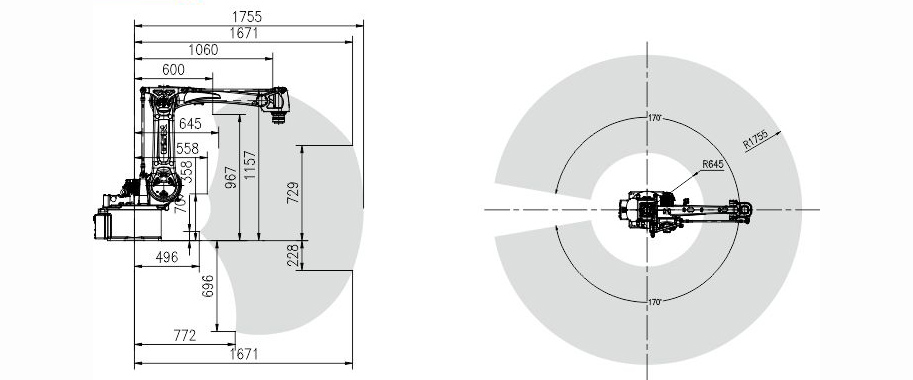

SDCX-RMD20	4	AC servo wakọ	20	±0.08	± 1170	± + 115 ~ -25	± + 70 ~ -90	± 360	170	170	185	330	0.51	Ọdun 1780^①	Ọdun 1720	256

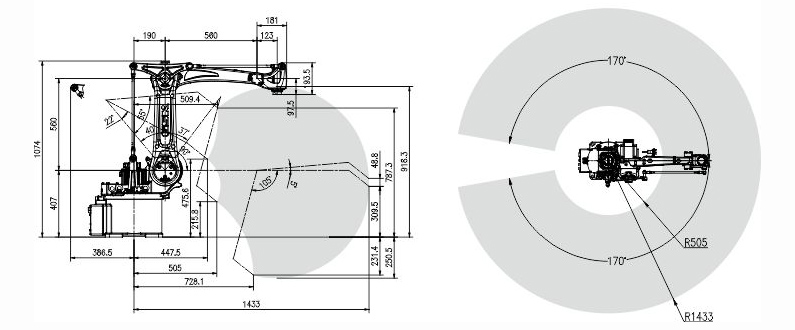

SDCX-RMD08	4	AC servo wakọ	8	±0.08	± 170	± + 90 ~ -40	± + 68 ~ -90	± 360	251	195	195	367.5	0.25	1800^①	1433	180

Awọn akiyesi:

① Orin idanwo jẹ 150mm giga ati 1000mm fife, ati pe akoko akoko yiyi ni ipa nipasẹ awọn ipo iṣẹ gangan;

② Orin idanwo jẹ 200mm giga ati 1000mm fife, ati pe akoko akoko yiyi ni ipa nipasẹ awọn ipo iṣẹ gangan;

③ Orin idanwo naa jẹ giga 400mm ati fife 2000mm, ati pe akoko akoko yiyi ni ipa nipasẹ awọn ipo iṣẹ gangan;

Yago fun olubasọrọ pẹlu inflammable, awọn ibẹjadi ati awọn gaasi ipata ati awọn olomi;Ṣe ki a má ba fi omi, epo ati erupẹ tu;Yẹra fun awọn orisun ariwo itanna (pilasima)
